DESCRIPTION

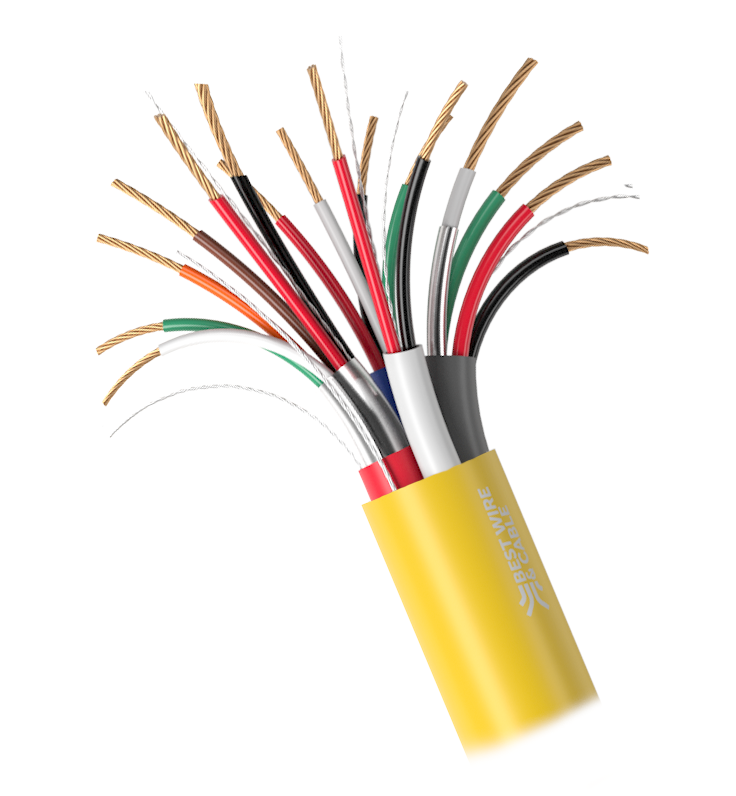

OSDP Composite Cable – Four Cable Component Assemblies – Access Control Cables are factory assembled bundles for multi-function access control doors. Cables for card reader, lock, door contact, and request to exit devices, are provided in one cable. Installations are simplified and quicker than when four separate common cables are used. Individual component cables are color coded and printed with their design function, for fastest field identification and termination
PART NUMBER
BWC-H93001-OSDP
OVERALL CONSTRUCTION
1.) 22/2PR STR CMP LoCap + 18/2 STR CMP – OSDP CABLE
2.) 22/2 STR CMP – DOOR
3.) 22/4 STR CMP – REX/SPACE
4.) 18/2 STR CMP – Lock Power
JACKET COLOR
YELLOW
STANDARDS
• UL 444 CMP, NEC article 800
• RoHS-2 (European Directive 2011/65/EU )
