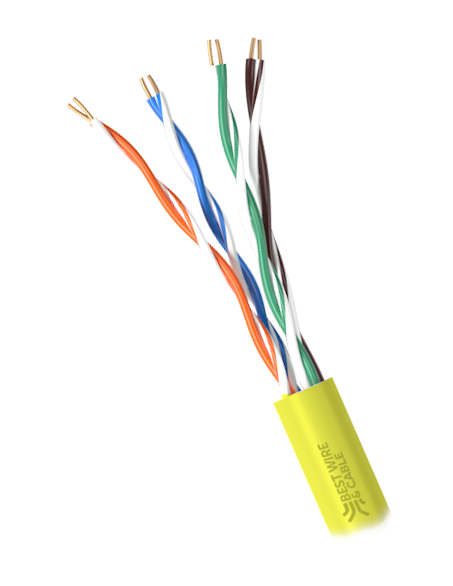

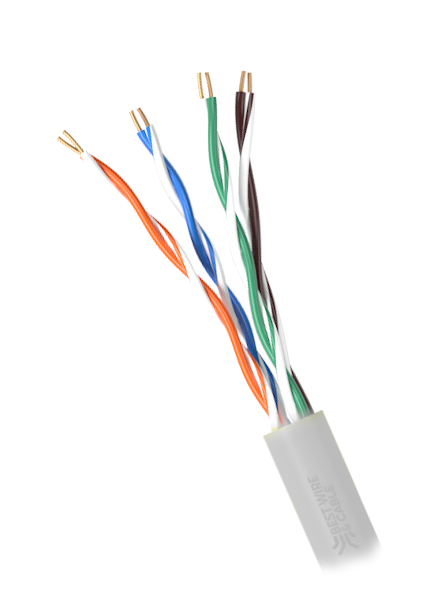

CAT 6E PLENUM (CMP) – UNSHIELDED

23 AWG Cat6E CMP, High-Performance Data Cable with Spline; 600 Mhz

DESCRIPTION

23 AWG Cat6E CMP, High-Performance Data Cable with Spline; 600 Mhz

STANDARDS

• UL Listed Type CMP
• C(UL listed FT4 & ETL Listed Type CMP
• C(ETL) listed Type CMP
• TIA/EIA-568-C.2, UL 1666 CMP RATED
• IEC 61156 and ANSI/TIA-568-C.2
• RoHS Compliant & ATM 155 Mbps
• Ethernet 10BASE-T, 100 BASE-TX, 100BASE-VG, 100BASE-T4
• 1000 Mbps 1000BASE-T Gigabit Ethernet (IEEE 802.3)
• 16 Mbps Token Ring (IEEE 802.5)

PART NUMBER

8130PL-6E

CONDUCTOR MATERIAL

SOLID ANNEALED BARE COPPER

NUMBER OF CONDUCTOR PAIRS

AWG SIZE

STRANDING

SOLID

INSULATION COLOR CODE

PAIR 1 (White/Blue & Blue); PAIR 2 (White/Orange & Orange); PAIR 3 (White/Green & Green); Pair 4 (White/Brown & Brown)

JACKET COLORS

Black, Blue, Green, Grey, Red, White, Yellow

INSULATION MATERIAL

POLYETHYLENE

OVERALL DIAMETER (INCHES)

.0040 IN. ± .002 IN.

AVERAGE THICKNESS (INCHES)

0,0088

JACKET MATERIAL

FLAME RETARDANT PVC

AVERAGE WALL THICKNESS (INCHES)

0,023

NOMINAL OUTER DIAMTER (INCHES)

.244 IN. ± .008 IN.

NOMINAL WEIGHT (LBS/KFT)

SHIELD MATERIAL

UNSHIELDED

RIPCORD

YES

TEMPERATUR RATING (INSTALLATION)	0°C to + 60°C
TEMPERATURE RATING (OPERATING)	-20°C to + 75°C
TENSILE STRENGTH (BEFORE)	>=13.8 Mpa
ELONGATION (AGING)	>=100%
AGING CONDITION	100°C X 168 hours
AGING CONDITION (AFTER)	>=85% OF UNAGED
AGING CONDITION (AGING)	>=50% OF UNAGED
MAX CONDUCTOR DC RESISTANCE @ 20°C	9.38 Ω / 100 Meters
MAX DC RESISTANCE UNBALNCED @ 20°C	5,0%
MAX. PAIR TO PAIR GROUND CAPACITANCE UNBALANCE	330 pF / 100 Meter
CHARACTERISTIC IMPEDANCE (1 - 350 MHz)	≤100 ± 15 Ω
MUTUAL CAPACITANCE	≤5.6 nF / 100 Meters
MAX. DELAY SKEW	≤40 nS / 100 Meters
VELOCITY OF PROPAGATION	0,7
