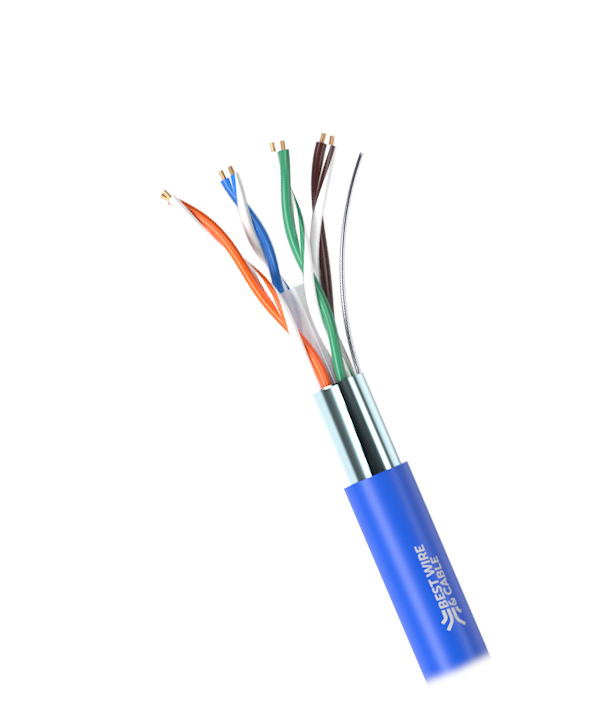

CAT 6A RISER (CMR) – SHIELDED

23 AWG Cat6A CMR, Twisted Pair, High-Performance Data Cable with Spline; 10G

DESCRIPTION

23 AWG Cat6A CMR, Twisted Pair, High-Performance Data Cable with Spline; 10G

STANDARDS

• UL Verified
• ANSI/TIA-568-C.2
• RoHS Compliant
• ATM 155 Mbps
• 10/100/1000/10G Base-T (IEEE 802.3)
• 4/16 Mbps Token Ring (IEEE 802.3)
• 100 Mbps TP-PMD
• ISDN, ADSL
• ATM LAN 1.2G
• Horizontal Distribution & Backbone Cabling

PART NUMBER

8230-6A

CONDUCTOR MATERIAL

SOLID ANNEALED BARE COPPER

NUMBER OF CONDUCTOR PAIRS

AWG SIZE

STRANDING

SOLID

INSULATION COLOR CODE

PAIR 1 (White/Blue & Blue); PAIR 2 (White/Orange & Orange); PAIR 3 (White/Green & Green); Pair 4 (White/Brown & Brown)

JACKET COLORS

Blue

INSULATION MATERIAL

HDPE

OVERALL DIAMETER (INCHES)

0,041

AVERAGE THICKNESS (INCHES)

0,0106

JACKET MATERIAL

RISER/CMR RATED PVC

NOMINAL WEIGHT (LBS/KFT)

SHIELD MATERIAL

Aluminum Tape

RIPCORD

YES

JACKET DIAMETER (INCHES)

0,3153

SPACER THICKNESS (INCHES)

0,0393

OUTER SHEATH THICKNESS (INCHES)

0,0177

TEMPERATUR RATING (INSTALLATION)	0°C to + 60°C
TEMPERATURE RATING (OPERATING)	-20°C to + 80°C
TENSILE STRENGTH (BEFORE)	>=13.8 Mpa
ELONGATION (AGING)	>=100%
AGING CONDITION	100°C X 168 hours
AGING CONDITION (AFTER)	>=85% OF UNAGED
AGING CONDITION (AGING)	>=50% OF UNAGED
MAX CONDUCTOR DC RESISTANCE @ 20°C	≤ 9.38 Ω / 100 Meters
MAX DC RESISTANCE UNBALNCED @ 20°C	≤ 4%
MAX. PAIR TO PAIR GROUND CAPACITANCE UNBALANCE	≤ 330 pF / 100 Meters
CHARACTERISTIC IMPEDANCE (1 - 350 MHz)	≤100 ± 15 Ω
MUTUAL CAPACITANCE	≤ 5.6 nF / 100 ft Nominal
MAX. DELAY SKEW	≤ 45 nS / 100 Meters
