CAT 6 FEP/FEP INDOOR/OUTDOOR – PLENUM

Unshielded Twisted Pair FEP/FEP Indoor / Outdoor Plenum Rated

APPLICATION

GameChanger cabling is designed specifically for transmitting Ethernet and can support all 8 classes of Power over Ethernet. GameChanger Cable can deliver 2.5Gbps and 100W PoE up to 656 feet (200m) or if you need to go farther, GameChanger Cable can deliver 10Mbps and 100W PoE up to 850 feet (259m).

DESCRIPTION

Unshielded Twisted Pair FEP/FEP Indoor / Outdoor Plenum Rated

PART NUMBER

BWC-258950306

SCOPE

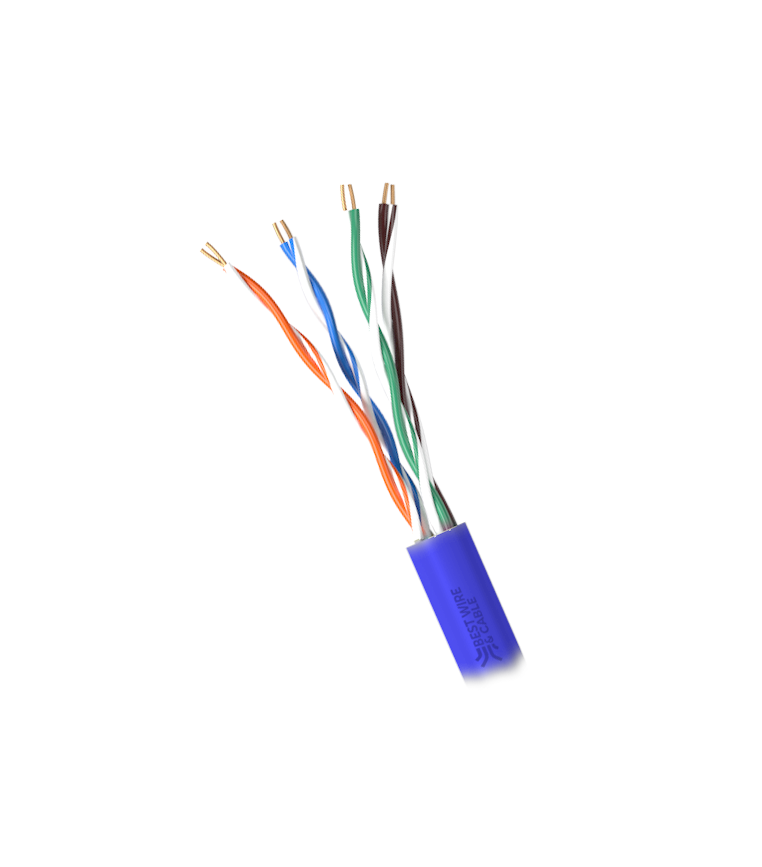

This cable consists of 4 pair solid bare copper; color-coded FEP insulation; marking tape and overall FEP jacket. RoHS-2 Compliant

CONDUCTOR

SOLID 22 AWG BARE COPPER

JACKET COLOR

BLUE

COLOR CODE

– Pair 1: White/Blue Blue Pair – 2: White/Orange Orange Pair – 3: White/Green Green Pair – 4: White/Brown Brown

INSULATION

FEP (O.D. .044″)

CORE ASSEMBLY

4 twisted pairs cabled together to form the main core; a marking tape is included along the core4 twisted pairs cabled together to form the main core; a marking tape is included along the core

JACKET MATERIAL

FEP

NOMINAL O.D. (INCHES)

0,208

ELECTRICAL PROPERIES

• Conductor Resistance: ≤9.38Ω/100m
• Insulation Resistance: ≥5000MΩKm (DC500V Charged 1 Min)
• Mutual Capacitance: ≤5.6nF/100m
• Maximum Voltage: 300V (Per NEC, not suitable for Class 1 power applications)
• NVP: 63%

TEMPERATURE RATINGS

Installing: -40°C to + 200°C & Operating: -40°C to + 200°C

POWER OF ETHERNET SUPPORT

Class 1 – 8

NET WEIGHT (LBS/KFT)

32

CONNECTORS

GameChanger cabling works with most Cat 6 jacks and patch cords, but is only recommended to work with Platinum Tools ezEX44 or ezEX48 RJ45 modular plugs.
