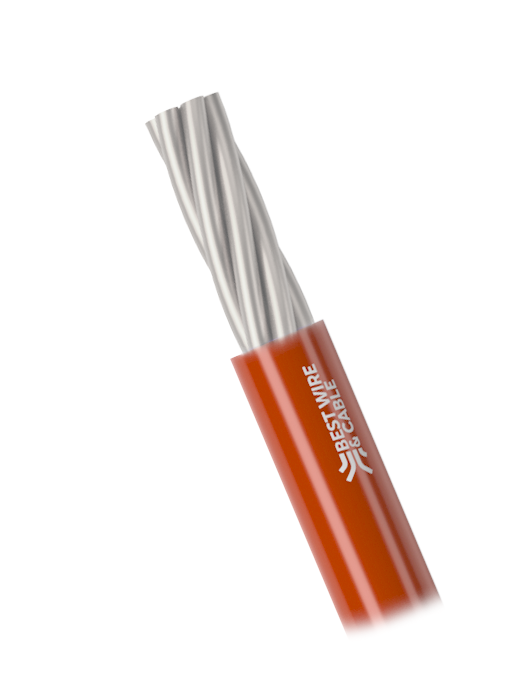

4 AWG Aluminum 2KV Photovoltaic Cable

Aluminum 2KV Photovoltaic Cable is primarily used for interconnection wiring of grounded and ungrounded photovoltaic power systems. When installed in accordance with NEC article 690.31(C)(2), PV source and PV output circuits, single-conductor cable of all sizes can be installed in outdoor cable trays. The PV cable is for applications up to 2000 volts and temperatures from -40°C to +90°C wet or dry

Get a Quote

APPLICATION

PART NUMBER

BWC-4-01ALPV-2KVXLP

STANDARDS

ASTM B800, B801, B836, B901 • UL 44 RHH RHW, UL 854 USE-2, UL 4703 PV Wire, UL 2556 • CSA listed RPVU90 per CSA C22.2 No. 271 • ANSI/ICEA S-95-658/NEMA WC 70 • VW-1 flame test, Sunlight Resistant, Direct Buria

CONDUCTORS

Compact stranded 8000 Series Aluminum conductor per ASTM B800, B801, B836, B901

CABLE MARKING

(UL) E340884 AL AA-8000 COMPACT STRAND XLPE RHH RHW2 1KV/2KV 90°C -40°C SUN RES DIR BUR VW-1

INSULATION

• Cross-linked polyethylene (XLPE), gas/oil and sunlight resistant, direct burial rated • Standard colors are black, red 8AWG-1000KCM and green in size 4AWG-1/0AWG. Other colors or stripes are available upon request

OPTIONS

600V UL PV Wire, CSA RPV90 available upon request • Paralleled conductors on one reel and circuit cuts available by request

CONDUCTOR SIZE (AWG/KCM)	4
NO. OF STRANDS	7
INSULATION THICKNESS (INCHES)	0,085
OVERALL DIAMETER (INCHES)	0,38
NET WEIGHT (LBS/KFT)	76
DC RESISTANCE AT 20°C (Ω/kft)	0,416
AMPACITY AT 90°C (AMPS)	75
