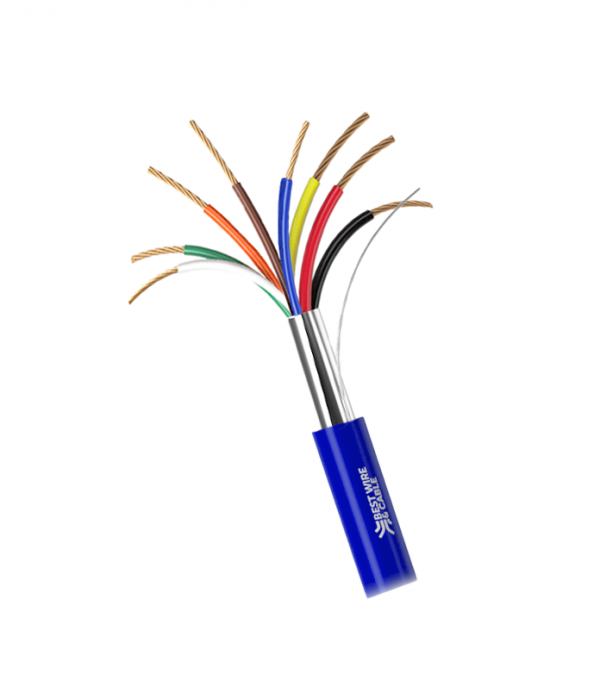

22 AWG 8 conductor 7 strand bare copper wire, plenum rated PVC insulation, shielded, with an overall plenum rated PVC jacket
22 AWG 8 conductor 7 strand bare copper wire, plenum rated PVC insulation, shielded, with an overall plenum rated PVC jacket
• UL listed as type CL3P per UL standard 13 and as type CMP c(UL)us 75°C FT-6 per UL standard 444
• All materials used in the manufacture of this cable are RoHS compliant
• Made in the USA
4535PL
WHITE, BLACK
Plenum Rated Polyvinylchloride
22 AWG 7 Strands Class B; ANNEALED BARE COPPER
BLACK, RED, WHITE, GREEN, BROWN, BLUE, ORANGE, YELLOW
PLENUM RATED POLYVINYLCHLORIDE
YES
ALUMINUM MYLAR TAPE – 100% COVERAGE
24 AWG 7 STRAND TINNED COPPER
YES
| AWG | 22 |
|---|---|
| CONDUCTOR | 8 |
| STRANDING | 7 |
| NOMINAL LAY LENGTH (LHL - INCHES) | 3 |
| INSULATION THICKNESS (INCHES) | 0,007 |
| JACKET WALL THICKNESS (INCHES) | 0,015 |
| OVERAL DIAMETER (INCHES) | 0,173 |
| NET WEIGHT | 30 |
| VOLTAGE | 300 |
