22 AWG 4 C SHIELDED FEP/FEP – PLENUM

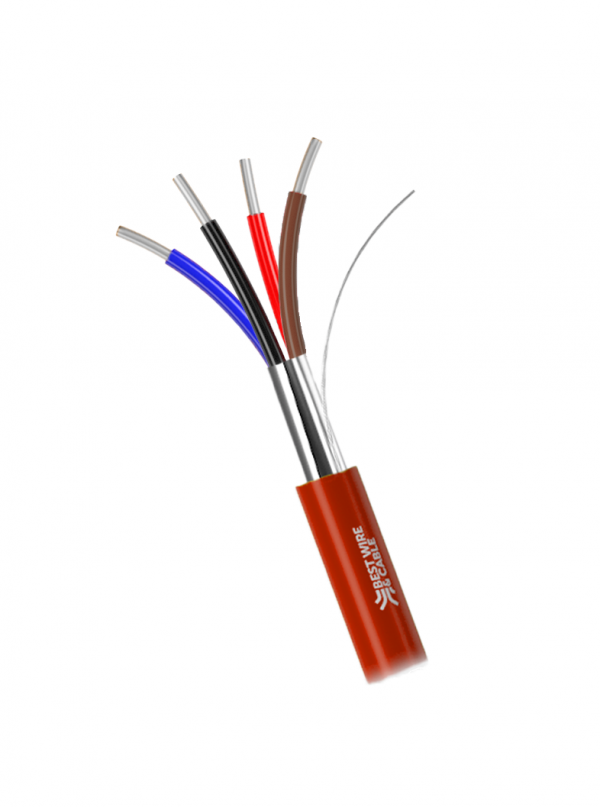

High Temperature Electronic, 4 Conductor 22AWG (7×30) Tinned Copper, FEP Insulation, Overall Beldfoil®+Tinned Copper Braid(85%) Shield, FEP Outer Jacket, CMP

Get a Quote

APPLICATIONS

extreme high/low temperature environments; chemical resistant; outdoor and burial applications; low voltage analog signals (4-20ma, 0-10v, …); low voltage control (24v, …); line level audio; voice communications; panel wiring

DESCRIPTION

High Temperature Electronic, 4 Conductor 22AWG (7×30) Tinned Copper, FEP Insulation, Overall Beldfoil®+Tinned Copper Braid(85%) Shield, FEP Outer Jacket, CMP

PART NUMBER

BEL-83554

STANDARDS

• Environmental Suitability – Indoor-Plenum, Indoor, Outdoor, Sunlight Resistance, Oil Resistance
• Flammability / Reaction to Fire – NFPA 262, UL 910 (Plenum), FT6
• CPR Compliance – CPR Euroclass: Eca
• NEC / UL Compliance – Article 800, CMP
• CEC / C(UL) Compliance – CMP
• European Directive Compliance – EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
• UK Regulation Compliance – UKCA Mark
• APAC Compliance – China RoHS II (GB/T 26572-2011)

JACKET COLOR

RED

JACKET

FEP

CONDUCTORS

22 AWG TINNED COPPER (7 x 30 STRANDING)

COLOR CODE

BLACK, RED, WHITE, GREEN

INSULATION

FEP

SHIELD

BI-LAMINATE (ALUM + POLY) TAPE – 100% COVERAGE & BRAID – TINNED COPPER AT 85%

MECHANICAL CHARACTERISTICS

• TEMPERATURE – UL Temperature: 150°C
• TEMPERATURE – Operating: -70°C to +200°C
• BEND RADIUS – Stationary Min: 1.61″
• BEND RADIUS – Installation Min: 1.61″

ELECTRICAL CHARACTERISTICS

• Nominal Conductor DCR – 15.5 Ohm/1000 ft
• Nominal Capacitance Cond-to-Cond – 23 pF/ft (98 pF/m)
• Nominal Capacitance Cond-to-Other (Conds + Shield) – 40 pF/ft (190 pF/m)
• Max Current – 2.2 Amps per Conductor at 25°C

AWG	22
CONDUCTOR	4
STRANDING	7 x 30
INSULATION THICKNESS (INCHES)	0,0065
JACKET WALL THICKNESS (INCHES)	0,015
OVERAL DIAMETER (INCHES)	0,161
NET WEIGHT	25
