DESCRIPTION

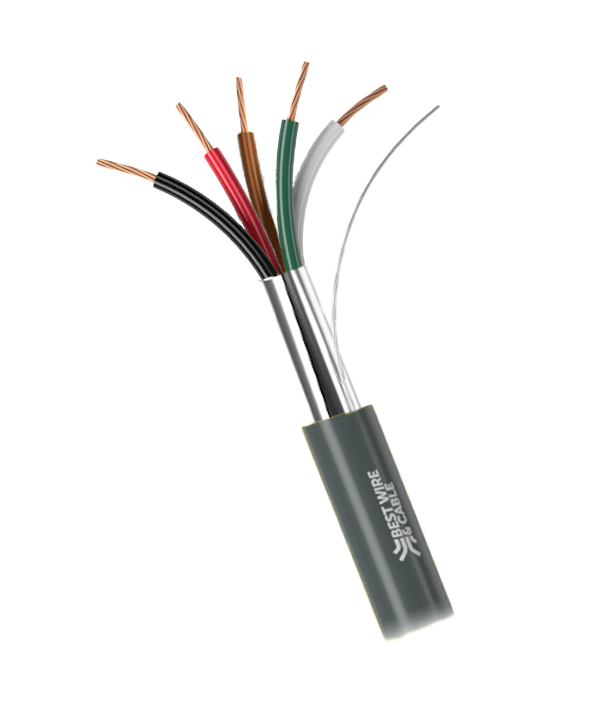

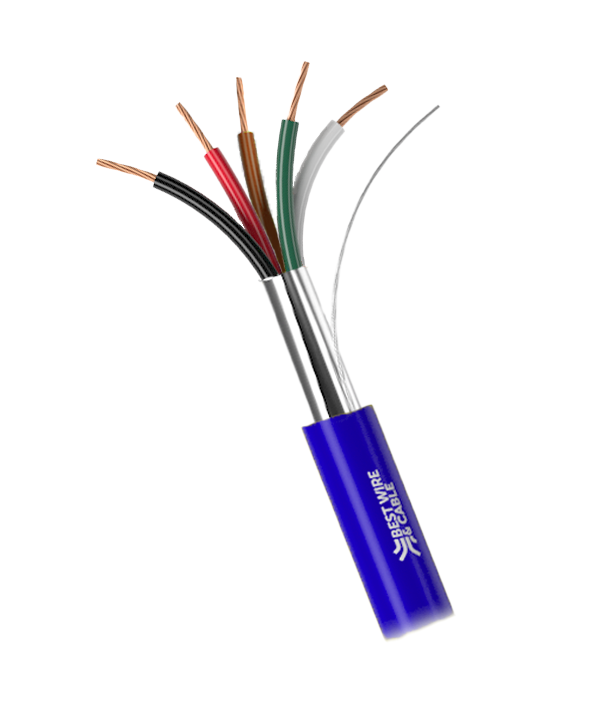

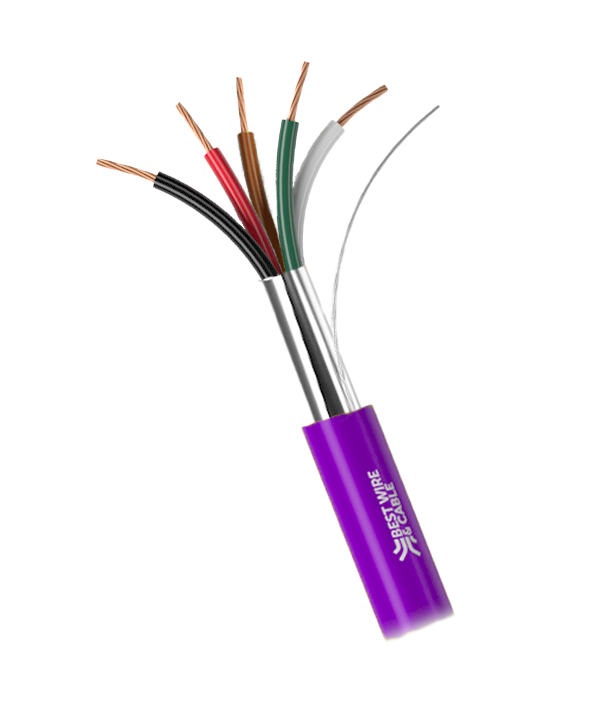

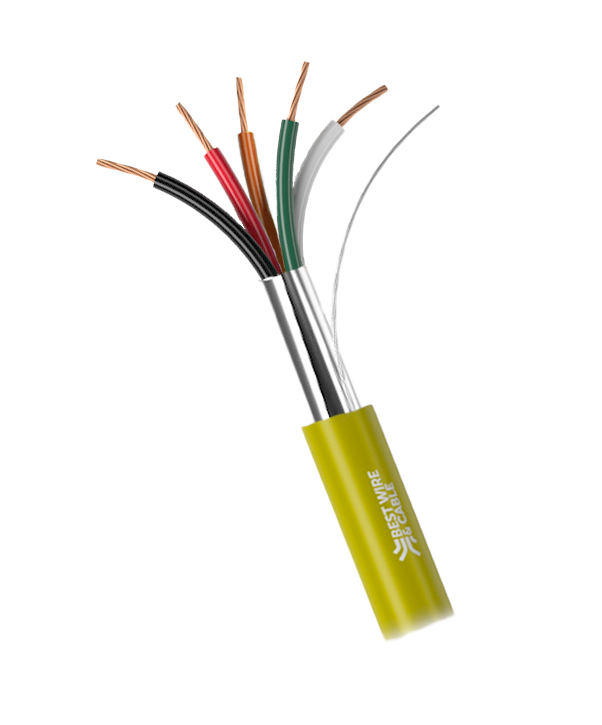

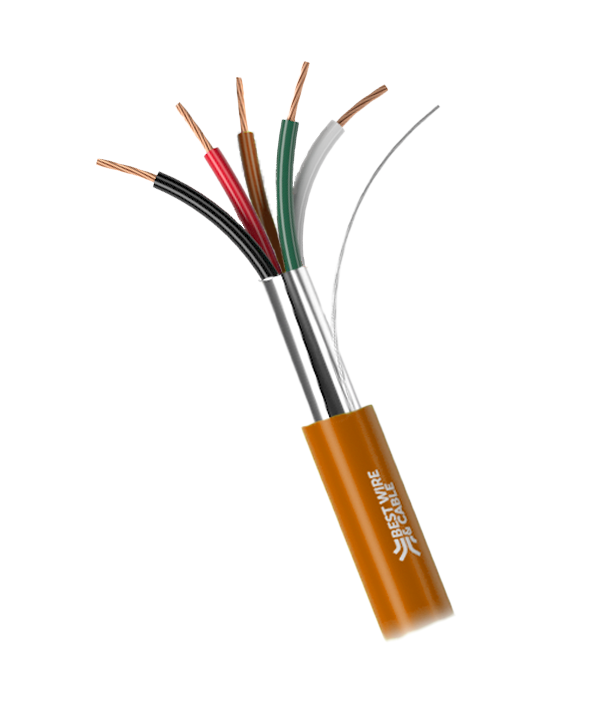

18AWG 5 conductor 7 strand bare copper wire, plenum rated PVC insulation, shielded, with an overall plenum rated PVC jacket
STANDARDS
- Refer to NEC (NFPA 70) article 725 and article 800 for installation guidelines
- UL listed as type CL3P per UL standard 13 and as type CMP c(UL)us 75°C FT-6 per UL standard 444
- All materials used in the manufacture of this cable are RoHS compliant
- Made in the USA
PART NUMBER
4575PL
JACKET COLORS

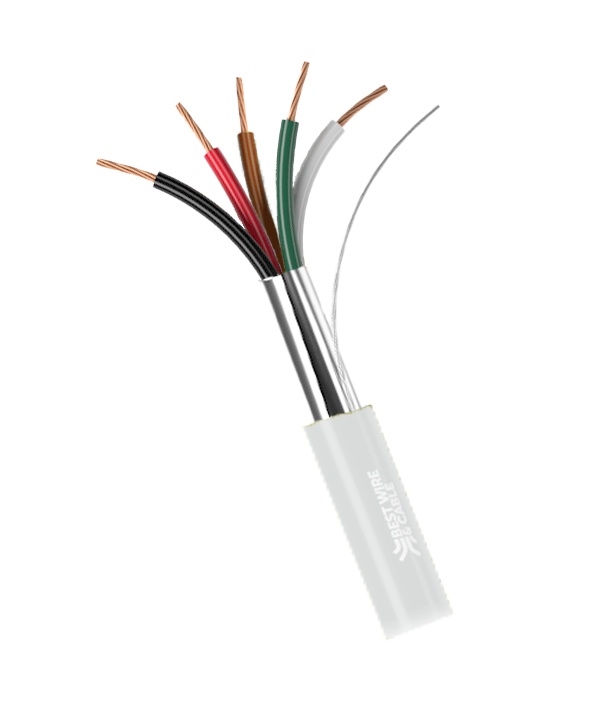

WHITE
APPLICATION
This cable is most likely used in low-voltage control, security, or communication systems, where multiple connections are needed for power, control signals, or data transmission.
It can connect devices like card readers, electronic locks, and control panels.
Frequently used for wiring alarm systems, motion detectors, and door sensors where multiple wires are needed for power and data signals.
In HVAC (heating, ventilation, and air conditioning) or lighting control systems, the cable can carry signals between controllers and sensors.
It can be used to connect speakers, microphones, and communication systems in buildings.
