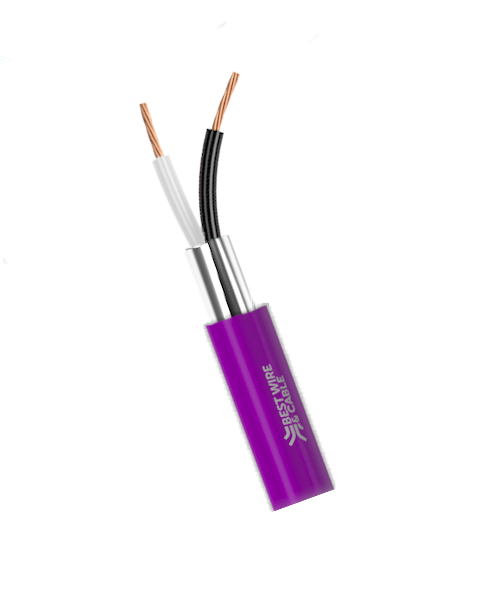

18 AWG 2 C SHIELDED MIDCAP PLENUM

18 AWG 2 conductor 7 strand tinned copper wire with plenum rated Foam FEP insulation, shielded, with an overall plenum rated PVC jacket.

Get a Quote

APPLICATION

18 AWG 2 conductor 7 strand tinned copper wire with plenum rated Foam FEP insulation, shielded, with an overall plenum rated PVC jacket.

PART NUMBER

4360PL-MC

STANDARDS

• Suitable for installation under NEC (NFPA 70) articles 800, 725 and 760 guidelines
• Suitable for installation in Canada under Section 60 of CEC, Part I
• C(UL)US listed as CMP per UL standard 444 and per CSA C22.2 No. 214-17
• UL listed as CL3P per UL standard 13 or FPLP per UL standard 1424
• Meets NFPA 262 (Steiner tunnel) flame test
• Meets RoHS 2002/95/EC Directive, RoHS 2 2011/65/EU Directive, RoHS 3 2015/863/EU Directive
• REACH compliant per Regulation (EC) No 1907/2006 (224) Updated June 10, 2022
• Operating Voltage: 300v RMS
• Made in the USA

JACKET

TUBE EXTRUDED PLENUM RATED POLYVINYLCHLORIDE

CONDUCTORS

18 AWG 7 STRANDS CLASS B; ANNEALED TINNED COPPER

COLOR CODE

BLACK, WHITE

IMPEDANCE

58 Ω +/-10%

CAPACITANCE

22.8 pF/ft. +/-10%

DC RESISTANCE

6.80 Ω/Mft. @ 20°C

INSULATION

PLENUM RATED FOAM FEP

ASSEMBLY

SHIELDED; Aluminum/Mylar Tape – 100% Coverage with 24 AWG 7 Strands Tinned Copper drain wire

AWG	18
CONDUCTOR	2
STRANDING	7
NOMINAL LAY LENGTH (LHL - INCHES)	2
INSULATION THICKNESS (INCHES)	0,01
JACKET WALL THICKNESS (INCHES)	0,015
OVERAL DIAMETER (INCHES)	.162 ± .013
NET WEIGHT	21
VOLTAGE	300
