PART NUMBER
BC-88760
DESCRIPTION

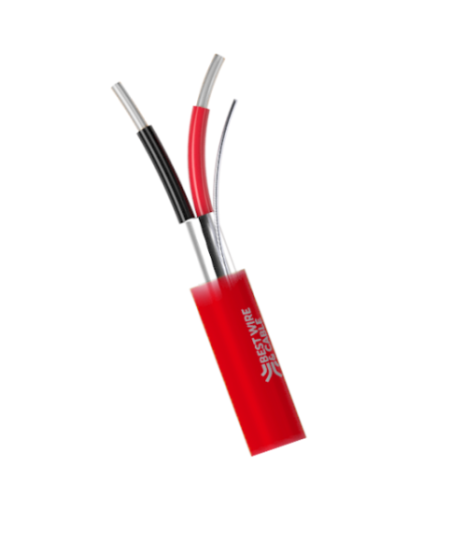

18 AWG 2 conductors stranded tinned copper wire with FEP insulation, shielded, and overall FEP jacket. CMP C(UL)US 150°C, FT-6. For low-voltage electronic cable applications
STANDARDS
• Cable suitable for installation under NEC (NFPA 70) articles 800, 725 & 760 guidelines
• Cable suitable for installation in Canada under Section 60 of CEC, Part I
• C(UL)US listed as CMP per UL standard 444 and per CSA C22.2 No. 214-17
• UL listed as CL3P per UL standard 13 and FPLP per UL standard 1424
• Cable meets NFPA 262 (Steiner tunnel) flame test
• Cable meets RoHS 2002/95/EC Directive, RoHS 2 2011/65/EU Directive, RoHS 3 2015/863/EU Directive
• Cable is REACH compliant per Regulation (EC) No 1907/2006 (224) Updated June 10, 2022
• Made in the USA
JACKET COLOR
TRANLUCENT RED
