JACKET COLOR
BLACK
APPLICATION
Primarily used for power, control, signal, communication and lighting circuits in commercial and industrial environments. Suitable for installation in cable trays, supported by messenger in open air, raceways, channels, conduits and ducts. Approved for direct burial applications and outdoors in cable tray where sunlight resistant rating is required. Also may be installed in wet or dry locations or in areas exposed to chemicals and oils.
PART NUMBER
14-04TC-XLP
STANDARDS
• UL Listed as TC-ER (Exposed Run) per UL Standard 1277 and used in accordance with NEC for 3 or more conductors. • Approved for Class 1 or 2, Division 2 industrial hazardous locations per NEC • Individual conductors pass UL VW-1 flame test and rated XHHW-2/VW1, UL 1581/UL 2556 VW-1 • Rated at 90°C wet or dry • Oil Res I & II • “Heavy Duty” rating per ICEA Standards • Meets cold bend test at -25°C • NEMA WC70/ICEA S-95-658, NEMA WC57/ICEA S-73-532 • IEEE 1202 and CSA FT4 70,000 BTU Flame Test • IEEE 383 70,000 BTU Vertical Flame Test • ICEA T-29-520 210,000 BTU
DESCRIPTION

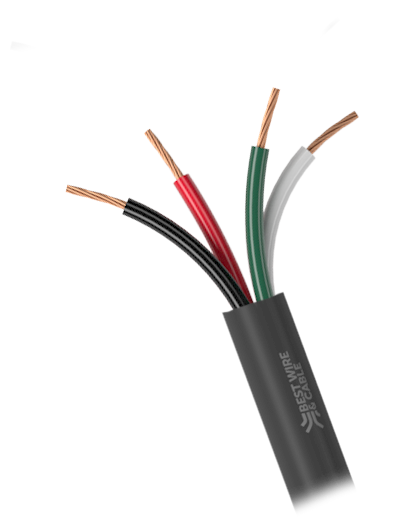

Tray Cable UL Type TC / TC-ER – 600V XHHW Insulation – PVC Jacket
