APPLICATION

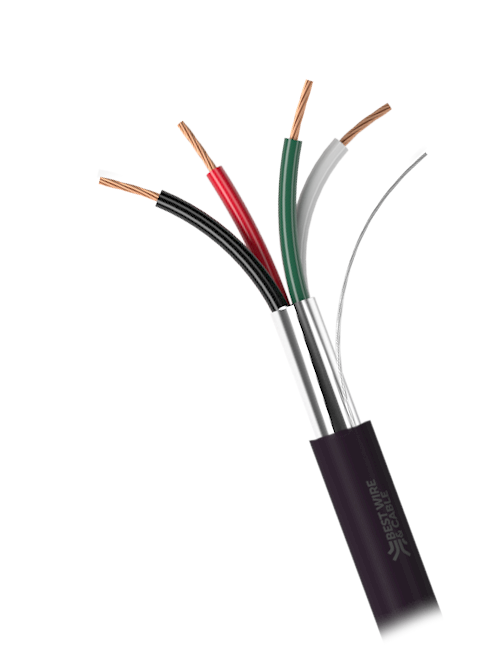

14 AWG 4 conductor 7 strand bare copper with polyvinylchloride and nylon insulation, an aluminum/mylar shield with a stranded tinned copper drain wire with an overall PVC jacket 600V control tray cable, PLTC, NPLF & FPL, approved for use in SUN RES DIR BUR OIL RES I 90°C applications.
PART NUMBER
1404S-VNQ
STANDARDS
• Refer to NEC (NFPA 70) article 1277 for installation guidelines
• UL listed as Type TC per UL Standard 1277 for tray cables and Quad Rated TC, PLTC, NPLF & FPL
• Cable is suitable for use in Class I Division II hazardous locations
• Meets ICEA S-73-532, where applicable
• All materials used in the manufacture of this cable are RoHS compliant
• Made in the USA
• UL approved for Direct Burial, Sunlight and Oil I Resistant applications
• Cable meets UL 1581 & 1202 (FT-4) 70,000 BTU/HR & ICEA T-29-520 210,000 BTU/HR requirements
JACKET COLORS
Black
