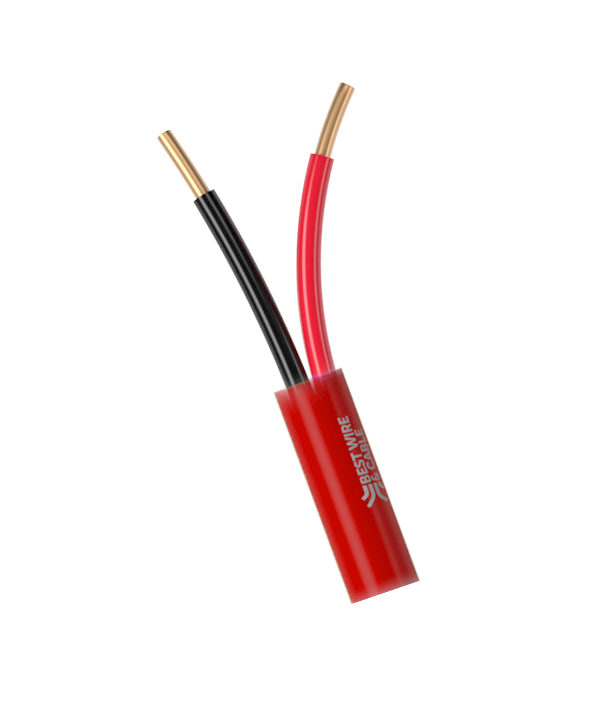

14 AWG 2 CONDUCTOR FPLR

14 AWG 2 conductor solid bare copper wire with PVC insulation, unshielded and overall PVC jacket for low-voltage electronic cable applications

Get a Quote

APPLICATION

14 AWG 2 conductor solid bare copper wire with PVC insulation, unshielded and overall PVC jacket for low-voltage electronic cable applications

PART NUMBER

7160

STANDARDS

• Cable suitable for installation under NEC (NFPA 70) article 725 and article 760 for guidelines
• UL listed as type CL3R per UL standard 13 and as type FPLR 75°C per UL standard 1424
• All materials used in the manufacture of this cable are RoHS II & REACH compliant
• Made in the USA

JACKET COLORS

RED, WHITE, YELLOW, BLUE, ORANGE, BLACK

CONDUCTORS

14 AWG SOLID; ANNEALED BARE COPPER

COLOR CODE

BLACK, RED, BROWN, BLUE

INSULATION

Polyvinylchloride

JACKET

Polyvinylchloride

ASSEMBLY

UNSHIELDED

AWG	14
CONDUCTOR	2
STRANDING	SOLID
NOMINAL LAY LENGTH (LHL - INCHES)	3
INSULATION THICKNESS (INCHES)	0.009
JACKET WALL THICKNESS (INCHES)	0.015
OVERAL DIAMETER (INCHES)	0.228
NET WEIGHT	65
VOLTAGE	300
