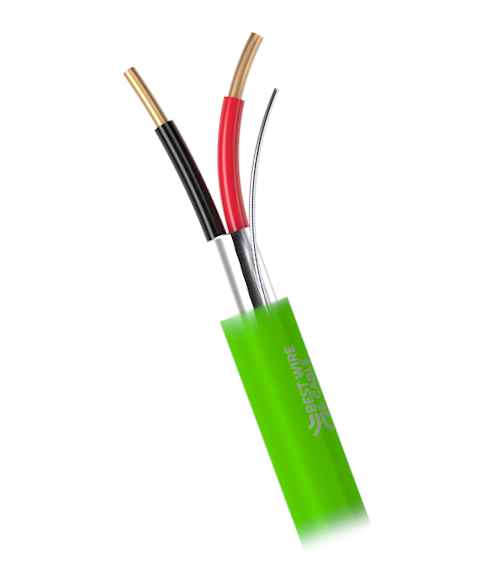

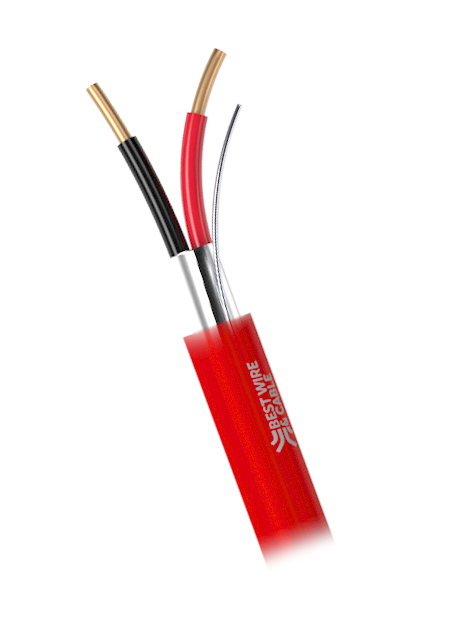

14 AWG 2 CONDUCTOR FPLP SHIELDED

14 AWG 2 conductor stranded bare copper wire with plenum rated PVC insulation, shielded and overall plenum rated PVC jacket for low-voltage electronic cable applications

APPLICATION

14 AWG 2 conductor stranded bare copper wire with plenum rated PVC insulation, shielded and overall plenum rated PVC jacket for low-voltage electronic cable applications

STANDARDS

• Cable suitable for installation under NEC (NFPA 70) article 725 and article 760 for guidelines
• UL listed as type CL3P per UL standard 13 and as type FPLP 75°C per UL standard 1424
• All materials used in the manufacture of this cable are RoHS II & REACH compliant
• Made in the USA

COLOR CODE

Red, Black

JACKET COLORS

RED, WHITE, BLUE, YELLOW, RED W/ BLUE STRIPE, BLACK, RED/GREEN STRIPE, RED W/WHITE STRIPE

PART NUMBER

7240PL

INDUSTRY CROSS REFERENCE

LAKE CABLE P142FS
SOUTHWIRE G60025
ADC 981402SD
GENESIS 4608
WINDY CITY WIRE 767920; 1402SPFA
TRANS CABLE FAS142
ANIXTER FA-1402C-1-2S

CONDUCTORS

14 AWG 7 Strand Class B; Annealed Bare Copper

INSULATION

Plenum Rated Polyvinylchoride

JACKET

Plenum rated Polyvinylchloride w/ Ripcord

ASSEMBLY

Shield – Aluminum Mylar – 100% Coverage; Drain Wire – 24 AWG 7 STR Tinned Copper

AWG

14

CONDUCTOR

2

STRANDING

7

NOMINAL LAY LENGTH (LHL - INCHES)

2,5

INSULATION THICKNESS (INCHES)

0,009

JACKET WALL THICKNESS (INCHES)

0,015

OVERAL DIAMETER (INCHES)

0,214

NET WEIGHT

41

VOLTAGE

300
