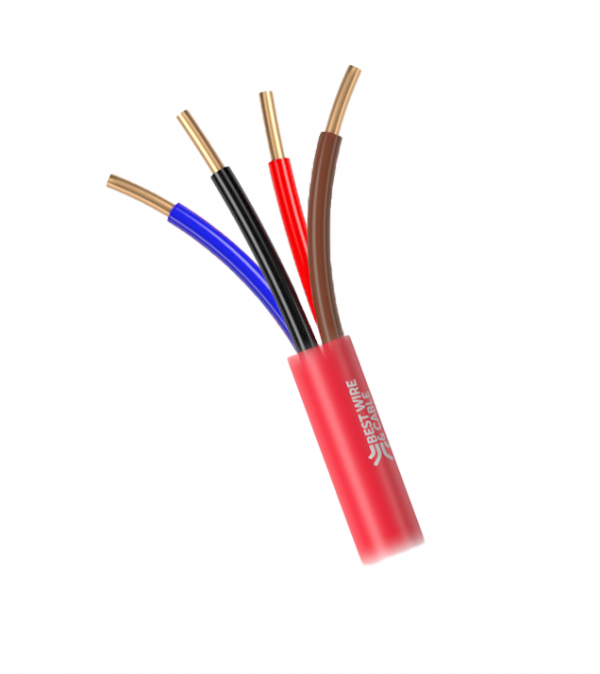

12 AWG 4 conductor solid bare copper wire with PVC insulation, unshielded and overall PVC jacket for low-voltage electronic cable applications.
12 AWG 4 conductor solid bare copper wire with PVC insulation, unshielded and overall PVC jacket for low-voltage electronic cable applications.
7185
• UL listed as type CL3R per UL standard 13 and as type FPLR 75°C per UL standard 1424
• All materials used in the manufacture of this cable are RoHS compliant
• Made in the USA
RED
12 AWG SOLID; Annealed Bare Copper
BLACK, RED
Polyvinylchloride
Polyvinylchloride
UNSHIELDED
| AWG | 12 |
|---|---|
| CONDUCTOR | 4 |
| STRANDING | SOLID |
| NOMINAL LAY LENGTH (LHL - INCHES) | 4 |
| INSULATION THICKNESS (INCHES) | 0,01 |
| JACKET WALL THICKNESS (INCHES) | 0,015 |
| OVERAL DIAMETER (INCHES) | 0,273 |
| NET WEIGHT | 100 |
| VOLTAGE | 300 |
